5.5kw 3000mm Cyclone Chain Link Fence Machine 4mm Single Wire

Brand Name : Tianke

Model Number : TK-GHJ3000

Place of Origin : Hebei,China

MOQ : One set

Payment Terms : Western Union, T/T, L/C

Supply Ability : 25 sets/month

Delivery Time : 5 work days

Packaging Details : The main machine will be fixed in the container by steel wire rope to make it stable.

Product Name : Chain Link Fence Machine

Wire Diameter : 1.5 - 4.0 mm

Material : Galvanized wire,PVC coated wire

Machine Type : Full Automatic chain link fence weaving machine

After-sales service provided : Engineers available to service machinery oversea,Video technical support,Field installation

Power : 5.5 kw servo motor

Mesh Width : Max.3000mm ( Customized )

Finish Product : Cyclone Fence Chain link fence mesh in rolls

Used : used as prevent for road, railway, airport, residence district, seaport, garden, feeding and husbandry.

Machine Color : Blue,Red,Orange ( Customized )

Voltage : 380v / 220v / 415v / 440v

Weight : 1900 kg

Contact Now

Cyclone Fence Wire Mesh Green Color In Korea Chain Link Fence Machine

Introduction of Chain Link Fence Machine

Cyclone fence wire mesh also called chain link fence.Full automatic chain link fence machine includes: main machine, weaving machine,mesh rolling machine and border wire treating machine as well as all related accessories, it can produce many different hole size of the mesh with different molds. The machine is controlled by PLC system, we can set the length of the fence in the visual touch screen in advance. When the machine reaches the length the machine will stop automatically.

Chain Link Fence Machine Advantage

1. It could work both of galvanized wire and pvc coated wire.

2. With alarm system for emergency matters occure.

3. Stop automatically.

4. With single/double wire feeding system.

5. It could adjust the mesh width automatically.

6. With high working efficiency and low noise.

Chain Link Fence Machine Parameter

Model Single Wire Double
Wire diameter 1.3-4mm 1.5-4mm
Mesh size 20-100mm 25-100mm
Mesh width 0.5-4m 0.5-4m
Speed 70-80m²/h 120-180m²/h
Mould Dies 2 sets mould for free
Mesh length 30m, adjustable freely as your request
Mesh side Knuckled and twisted, or knuckle, or twisted
Raw material Galvanized wire, PVC coated wire, etc.
Machine size 4.2*2.2*1.7m 6.7*1.43*1.8m
Weight 1500kg 2200kg
Operation One person can operate two or three machines

Application

The product is wildly used as prevent for road, railway, airport, residence district, seaport, garden, feeding and husbandry.

Chain Link Fence Machine Detail

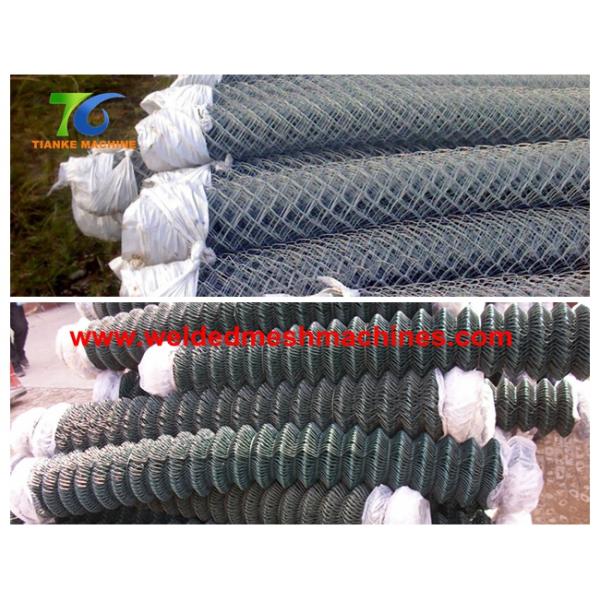

Material: The material of the Cyclone fence wire mesh chain link fence can be galvanized wire,pvc coated wire.They are rust proof and corrosion-resistant, and the service life of Cyclone fence wire mesh is long.

5.5kw 3000mm Cyclone Chain Link Fence Machine 4mm Single Wire

Language: The control system adopts Chinese and English. Button labels are also labeled in two languages

5.5kw 3000mm Cyclone Chain Link Fence Machine 4mm Single Wire

Twisted edge: This is one kind of the eage processing style,twisted edge.

5.5kw 3000mm Cyclone Chain Link Fence Machine 4mm Single Wire
